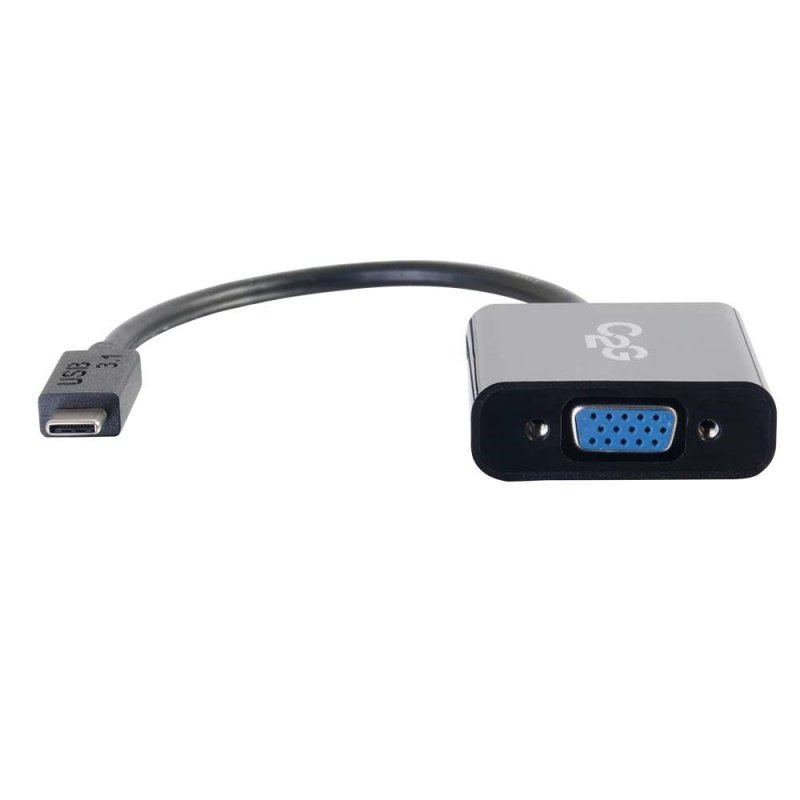

USB 3.1 USB-C To VGA Video Adapter - Black
Connect a USB Type-C port to the VGA port of a monitor or projector to display video.
Connector 1 : (1) USB-C Male
Connector 2 : (1) VGA Female
Product Description
This USB-C to VGA adapters is an ideal solution for utilizing the video support built in to USB Type-C ports to feed a video signal to a VGA monitor or projector to display video. This adapter supports up to a 1920x1200 resolution allowing it to deliver a high quality video image to the connected display. The compact design of this adapter make it a perfect pair for BYOD (Bring Your Own Device) applications in education or corporate environments.
Product Features
• Supports up to a 1920x1200 resolution
• Reversible symmetrical USB-C connector
• Compact lightweight design
• Plug and Play—no driver required
Video Specifications
• Maximum resolution: 1920x1200
Electrical specifications
• Voltage rating: 30V
• Insulation resistance: 10MΩ/km
Physical Characteristics
• Operation temperature: 0? - 50?C
• Storage temperature: -25?C - 70?C
Conductor 1 (3 pairs)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: FM-PE
• Shield: Aluminum foil - 100% coverage
• Drain wire: 32AWG (7/0.08 tinned copper)
Conductor 2 (4 conductors)
• Size: 32AWG (7/0.08 tinned copper)
• Insulation: HD-PE
Conductor 3 (1 conductors)
• Size: 28AWG (7/0.12 tinned copper)
• Insulation: HD-PE
Overall Cable
• Jacket (standard non-rated)
• Foil shield: Aluminum foil - 100% coverage
• Braided shield: 16/5/0.08 tinned copper
• Drain wire: 32AWG (7/0.08 bare copper)
• Outer diameter: 5.2 ? 0.2mm
| Features |
|---|
| USB Type | USB 3.1 & Type C |
| Colour | Black |
